HK Audio Linear 5 112 FA Full-Range Active 2-Way PA Speaker Cabinet Power Cable

With Linear 5, HK Audio has unveiled a line of high-performance PA cabinets that is sure to delight ambitious musicians and DJs as well as discerning hire companies. No other system competing in the class of 1" drivers can match its SPL. The 12"/1" full range speakers are incredibly powerful with its 1,000 watts of power and delivers the most powerful bass performance in its class. It also sports an asymmetrical horn (60° x 90° x 55°) tuned to optimize sound dispersion. The switchable EQ (High Power/Small Venue) configures the cab’s dynamic response to suit the application and location. High Power is always your first choice when you need maximum sound pressure and range. Small Venue is a great option for standard applications in smaller to midsized rooms and for moderate levels because it serves up a remarkably transparent and warm audio signal. The high-quality wood housing is anything but standard. Made of tough multilayer birch plywood and a birch/MDF hybrid, this rugged enclosure will not only stand up to the rigors of the road, but also has excellent performance-enhancing acoustical properties.

Features:

• Application: Mid / High or Stand Alone System
• 1000 Watt Class-D (650 W + 350 W, biamped)
• Integrated EQ switch (high power, small venue)
• High-quality 12″ speaker with 2.5″ voice coil
• Rotatable Asymmetrical horn (60°-90° x 55°)
• Accurate PA focus with reflection reduction
• Simple acoustic control of the system
• High sound pressure of 135 dB SPL
• No fatigue low distortion listening
• Balanced, high-resolution sound
• Made in Germany

Specifications:

• Frequency response +/- 3 dB: 70 Hz - 18 kHz
• Frequency response -10 dB: 60 Hz - 19 kHz
• Sensitivity HF 1W/1m: 110 dB full space, 116 dB half space
• Senitivity LF 1W/1m: 98 dB full space, 104 dB half space
• Max. SPL@10% THD: 127dB half space
• Max. SPL Peak@10% THD: 134 dB half space
• Amp: Class D - biamped
• Power Handling: 1000W RMS

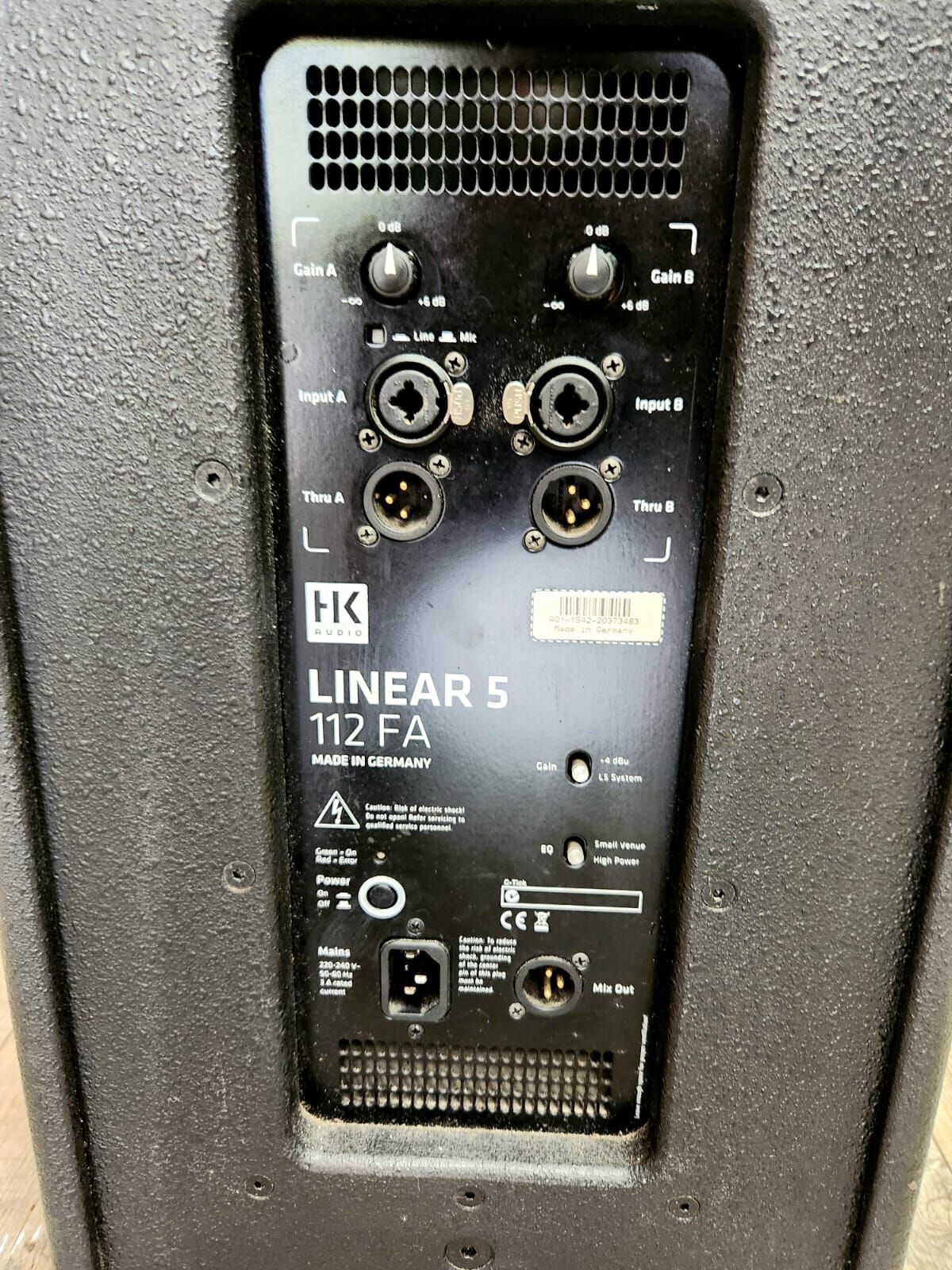

• Connections: 2x XLR-In, 2x XLR-Thru, 1x XLR-Mix Out LF
• Speaker: 1x 12" with 2.5" voice coil
• HF Driver: 1" with 1.75" voice coil
• Protection: Undervoltage, Thermal, Short-Circuit, Overcurrent
• Speaker Protections: Subsonic 24 dB/oct, Peak-Limiter
• Horn characteristics: 60° - 90° (Asy) x 55° CD-Horn, rotatable
• Crossover frequency: 1.65 kHz, 12 dB/Okt. active
• Pole mount: DuoTilt 3/7
• Rigging points: 3x M8

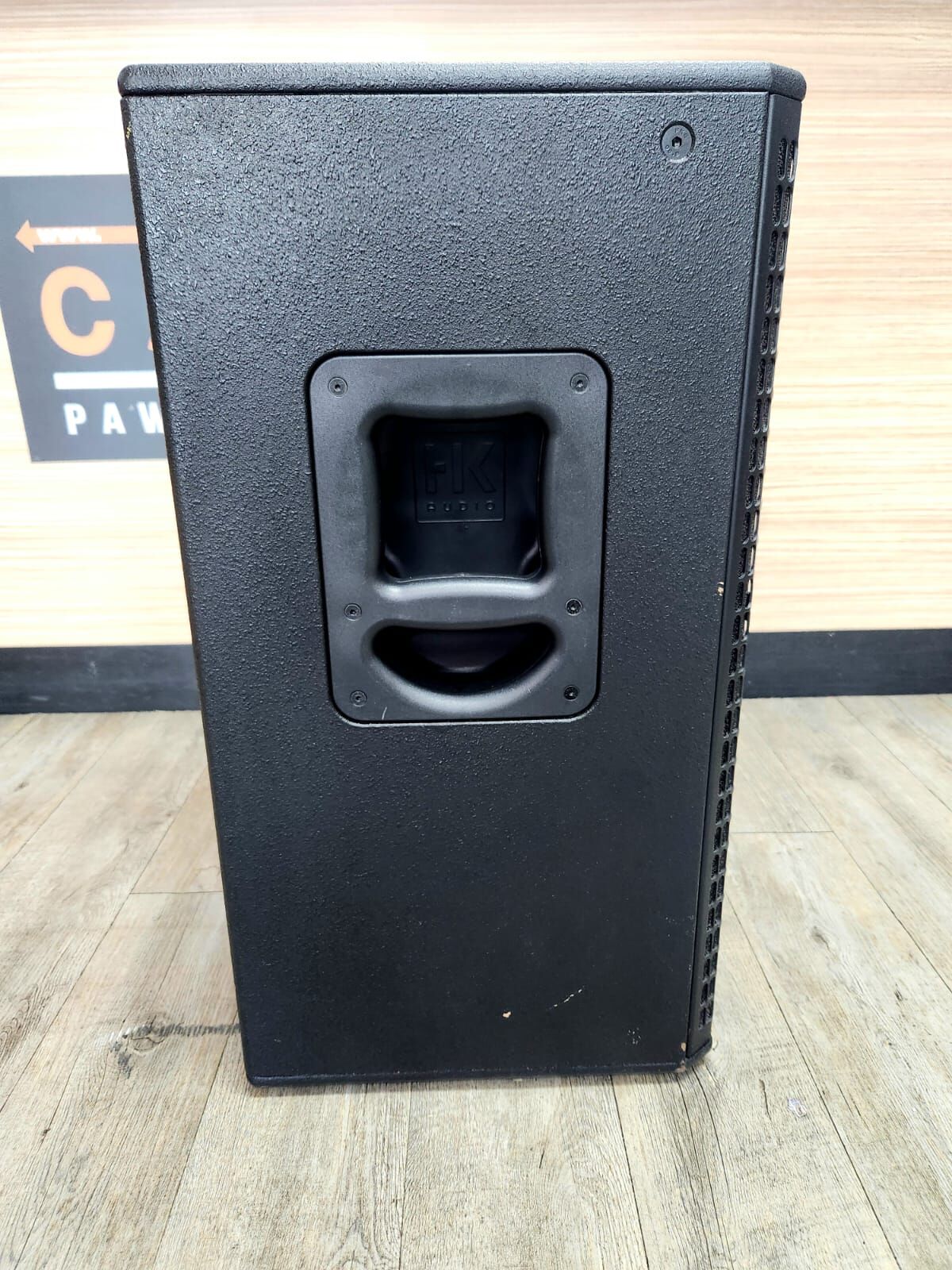

• Handles: 2, integrated
• Enclosure: Hybrid (birch-Multiplex / MDF)

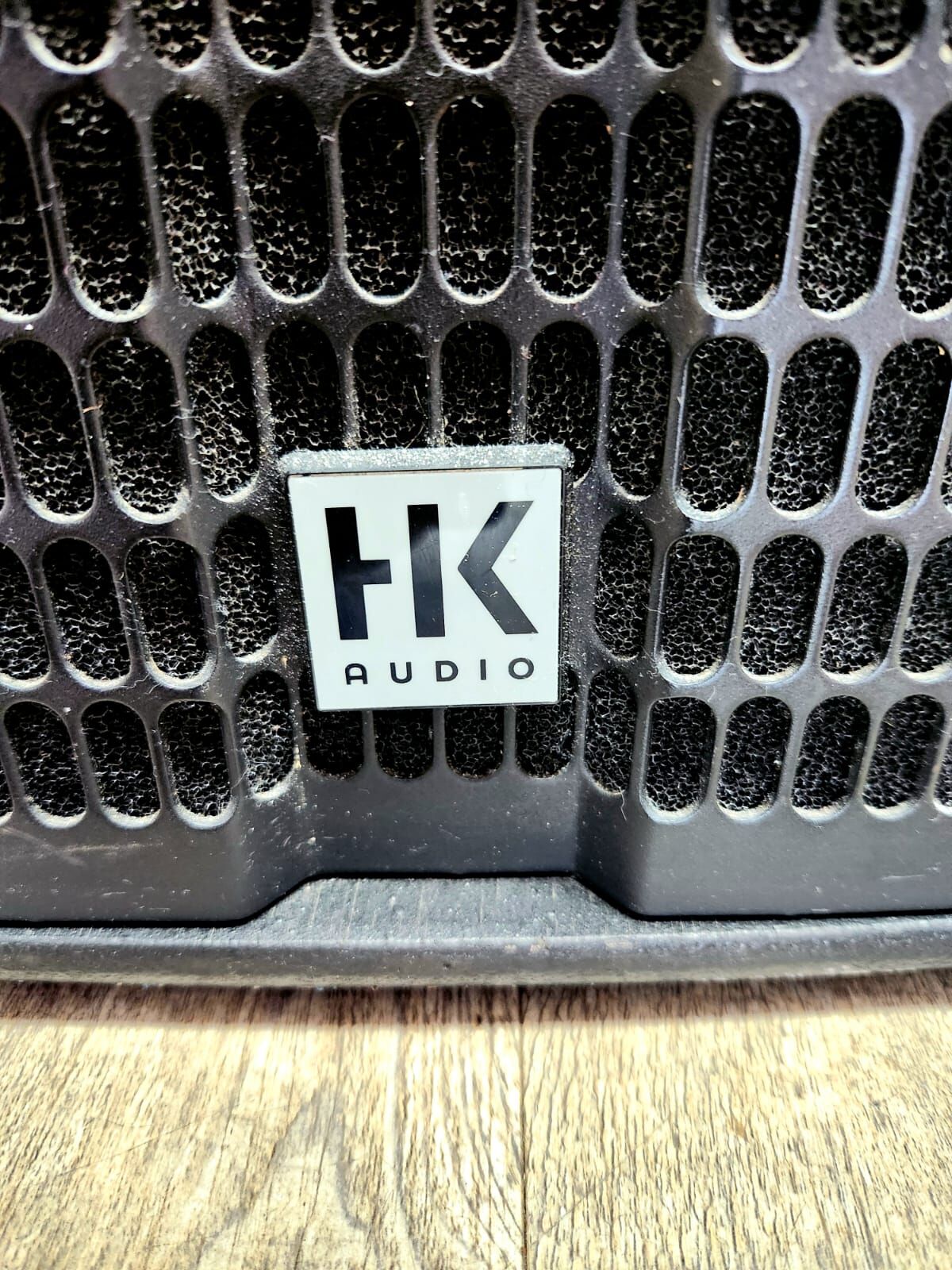

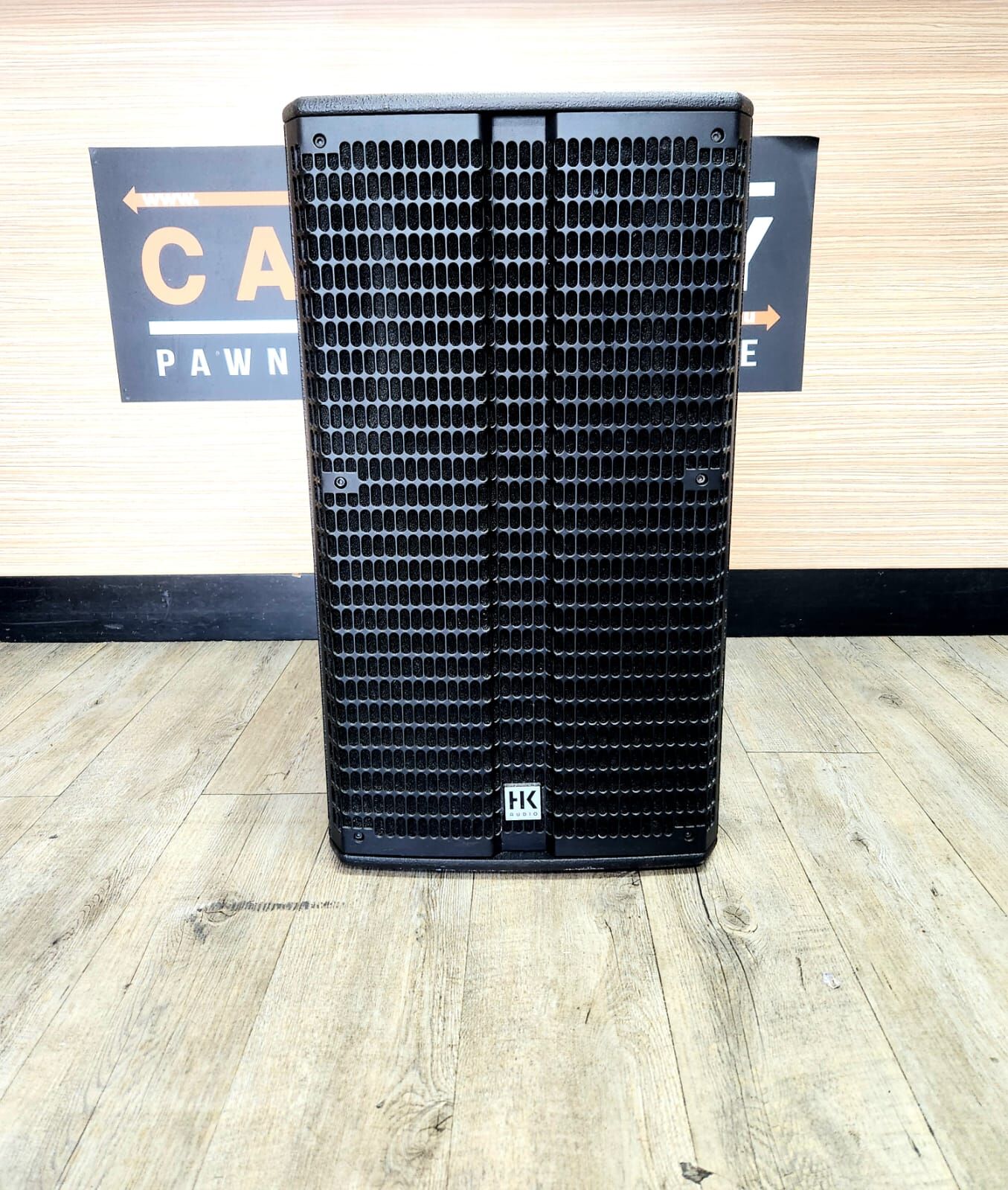

• Grille: 2 mm metal grille with acoustic foam
• Finish: Acrylic painture, black
• Dimensions (WxHxD): 37 x 66.8 x 36.5 cm
• Weight: 23.9 kg

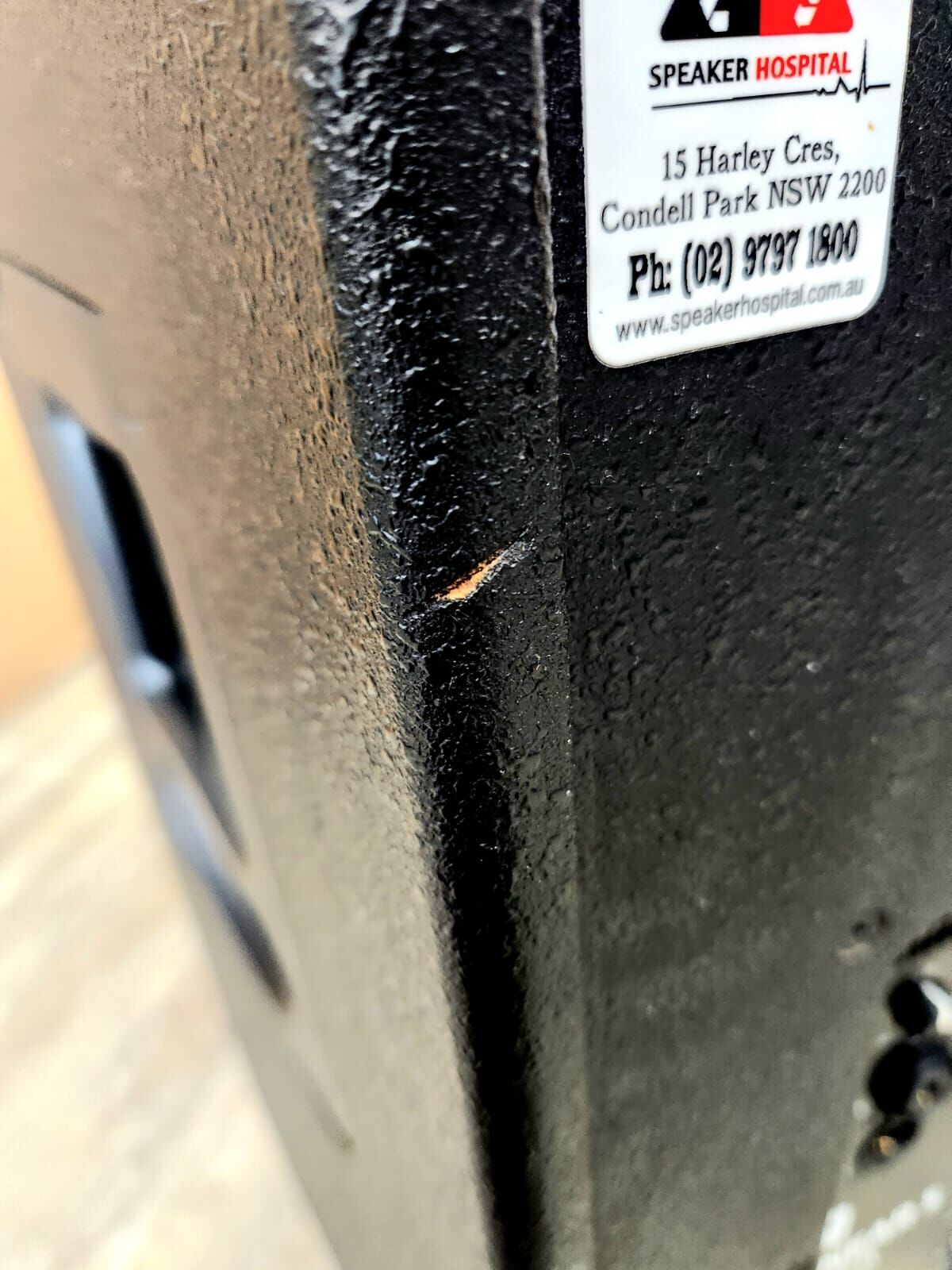

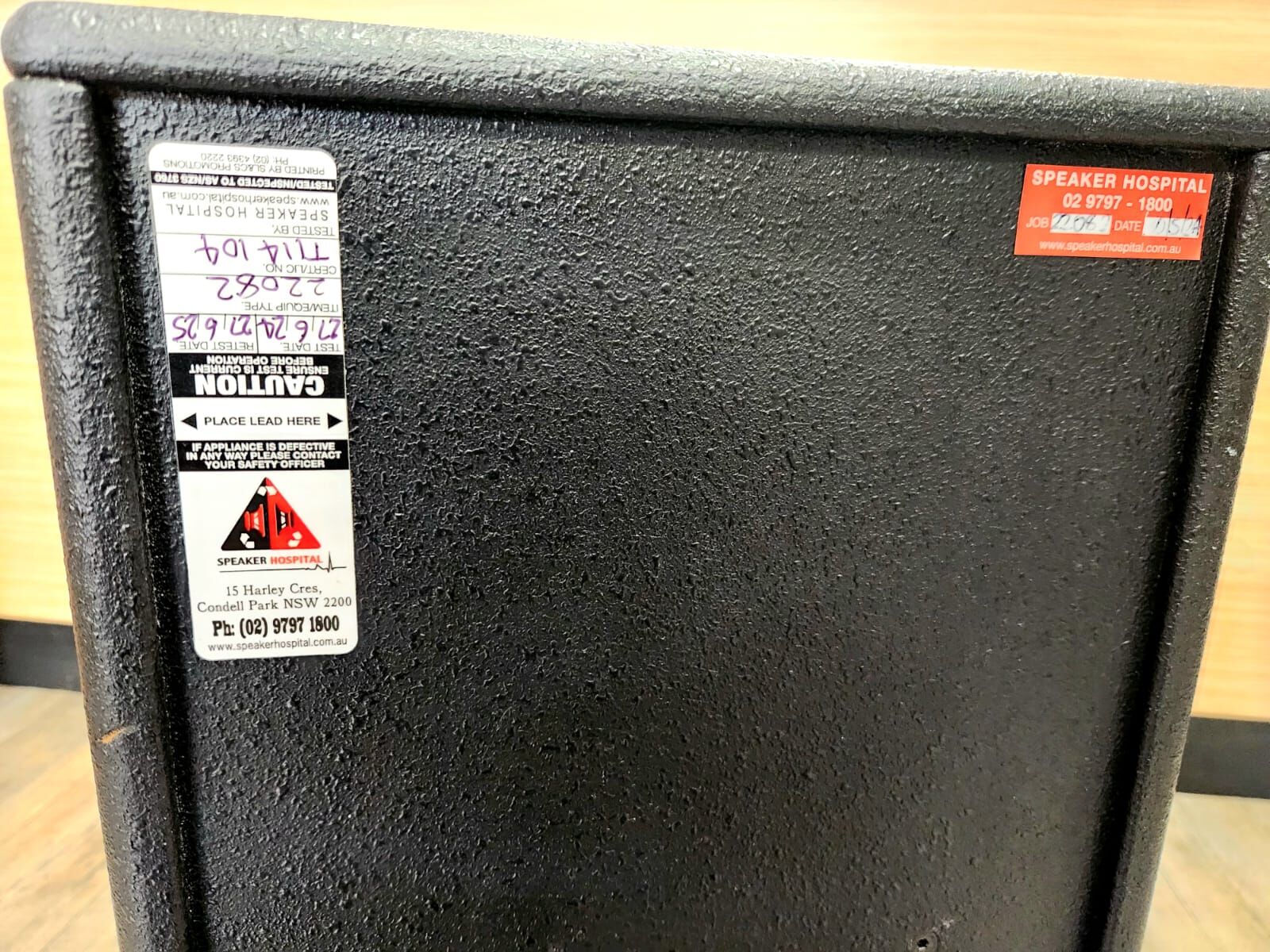

SMALL PAINT CHIPS SCATTERED THROUGHOUT.

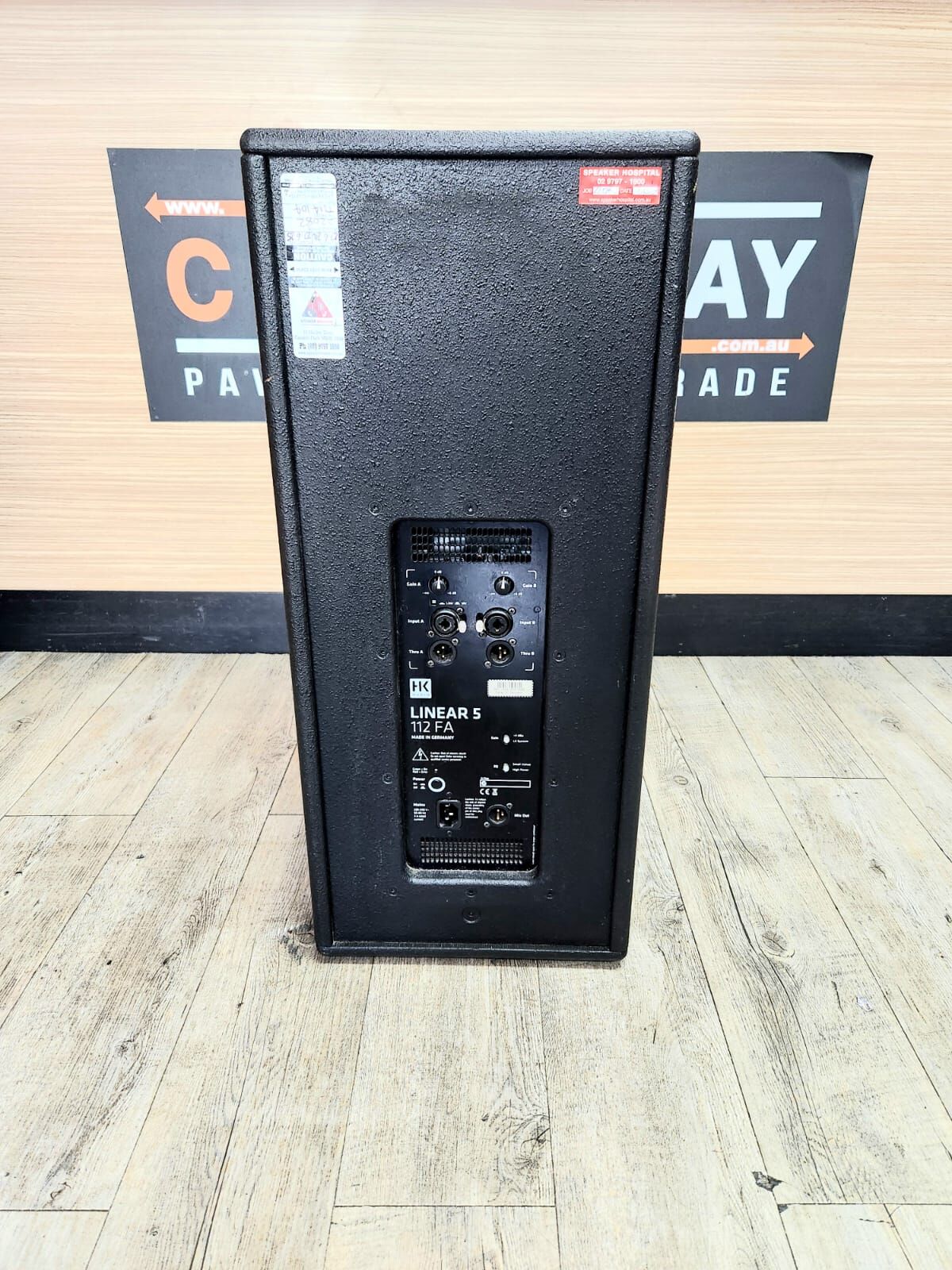

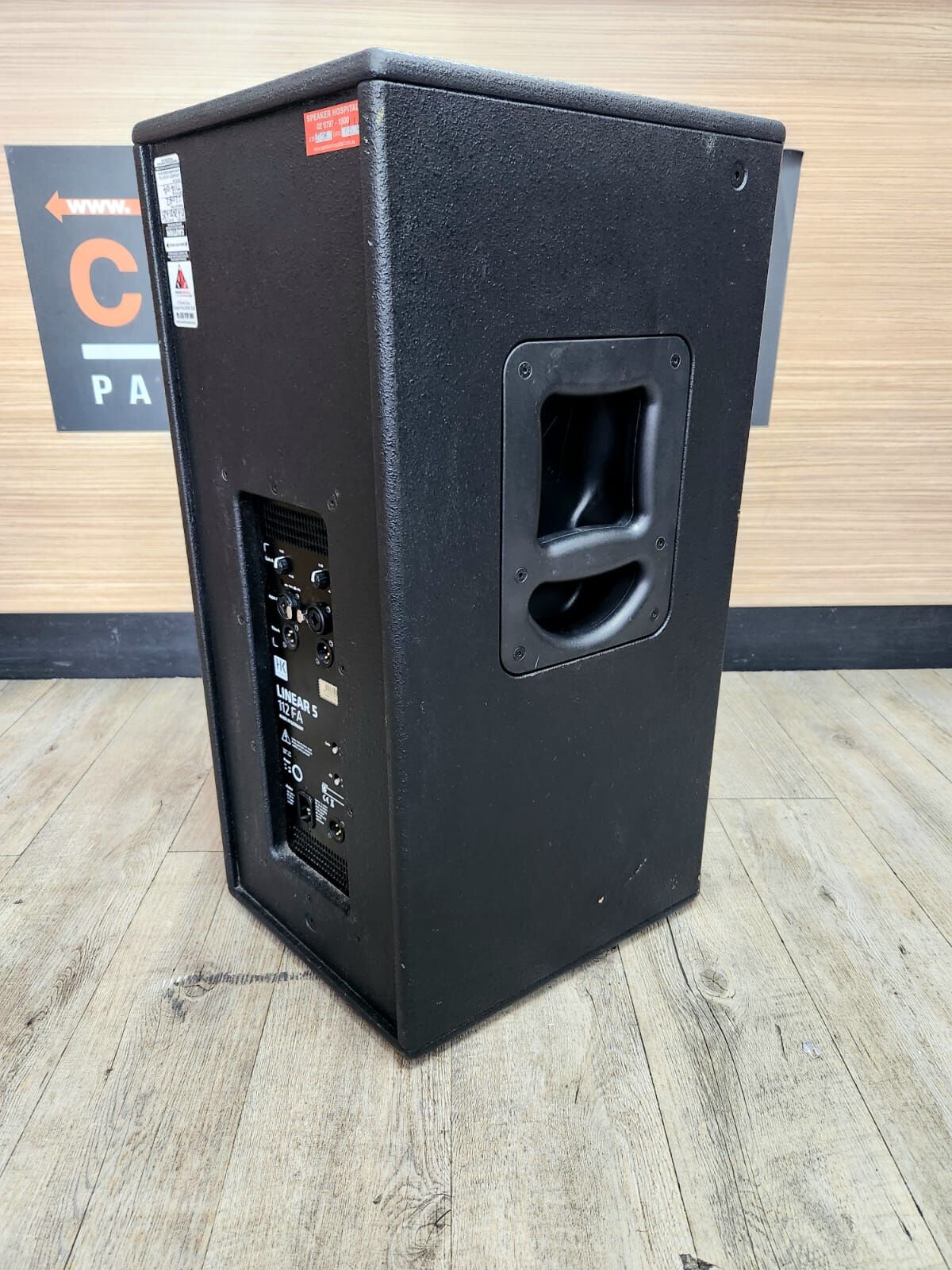

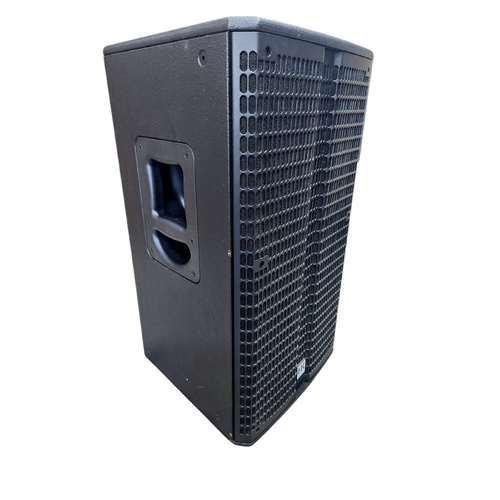

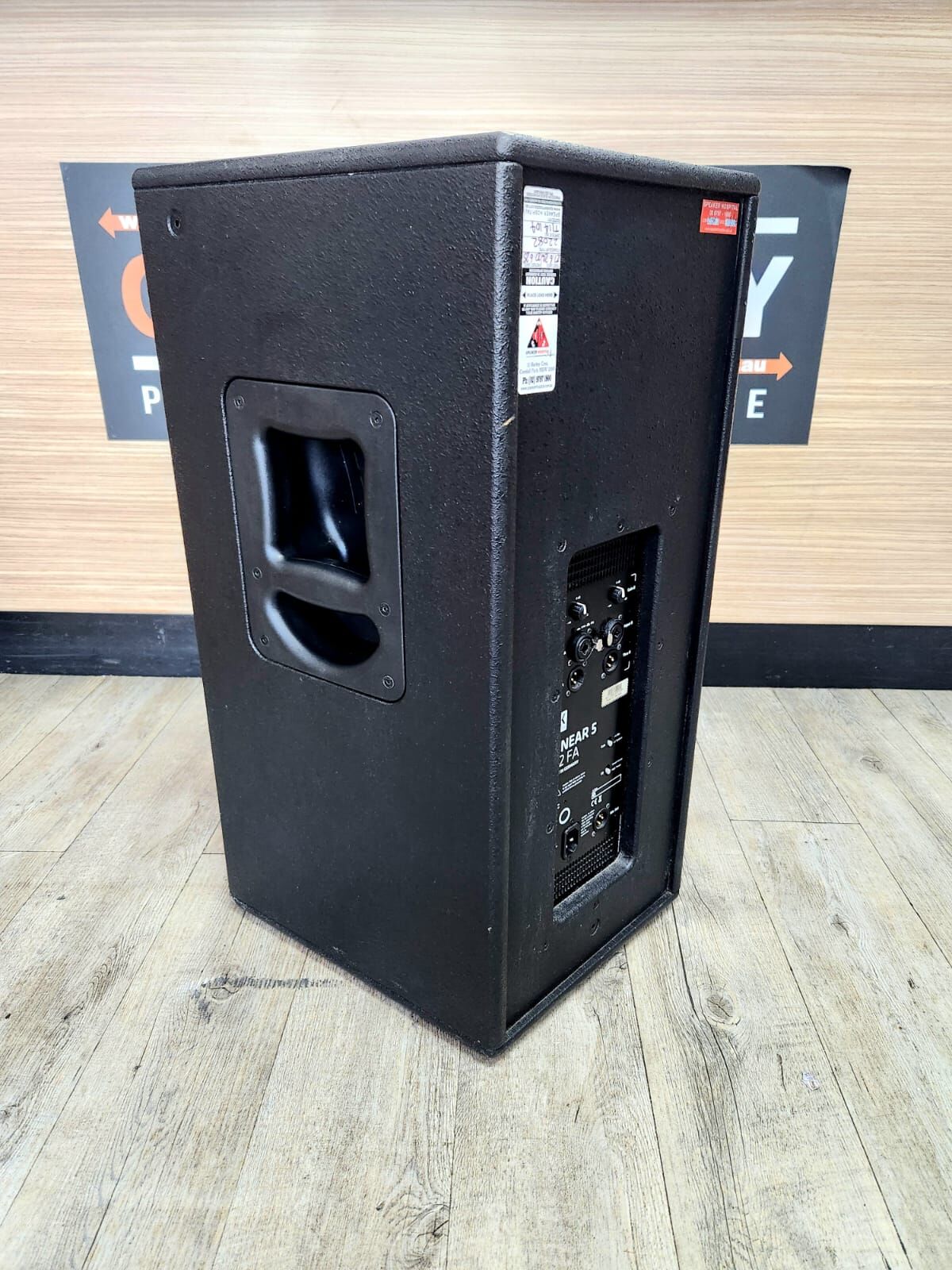

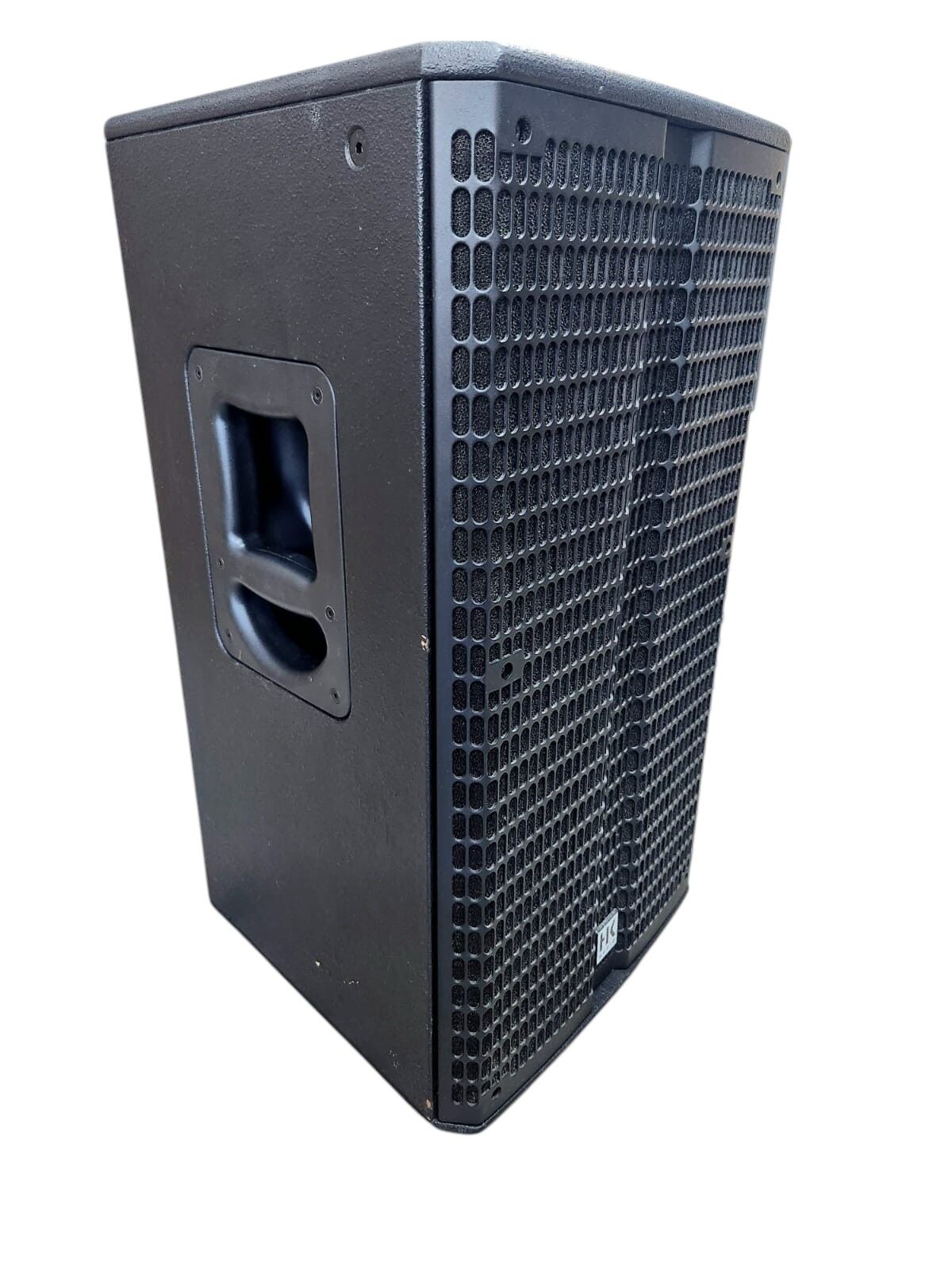

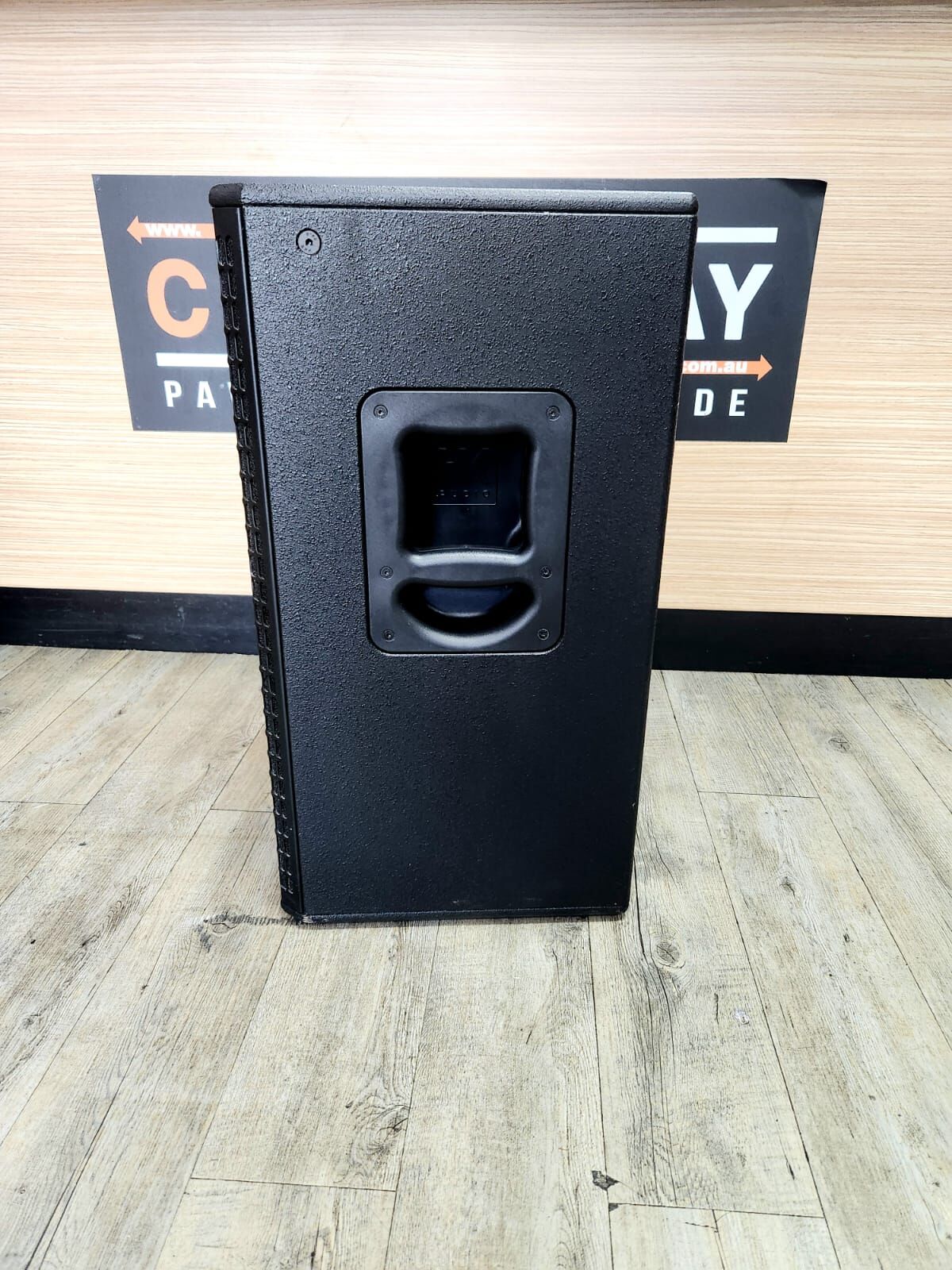

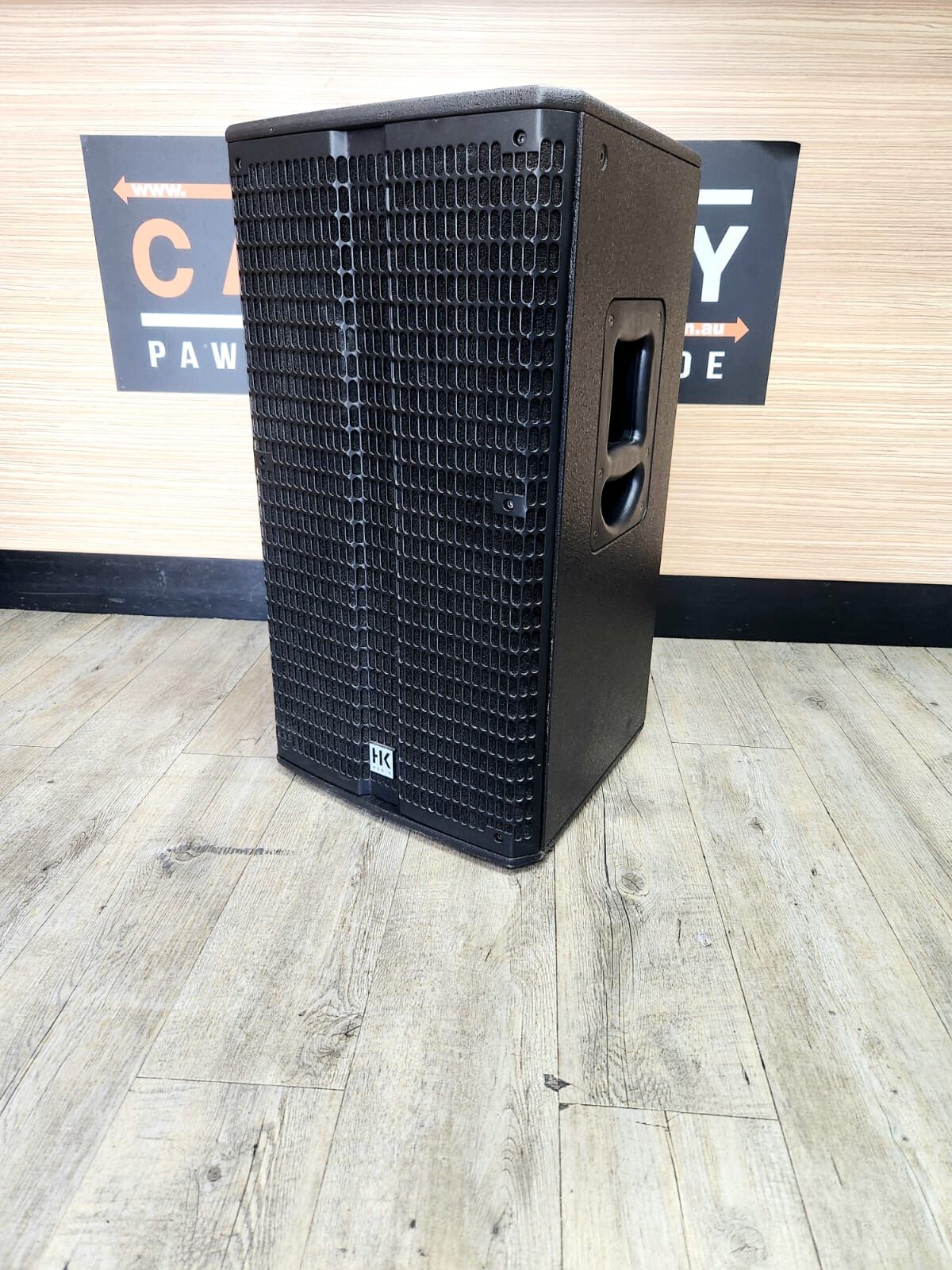

ITEM IS IN PRE OWNED CONDITION, REFER TO PHOTOS FOR THE EXACT CONDITION AND INCLUSIONS.

PICKUP ONLY FROM MOUNT DRUITT STORE!
