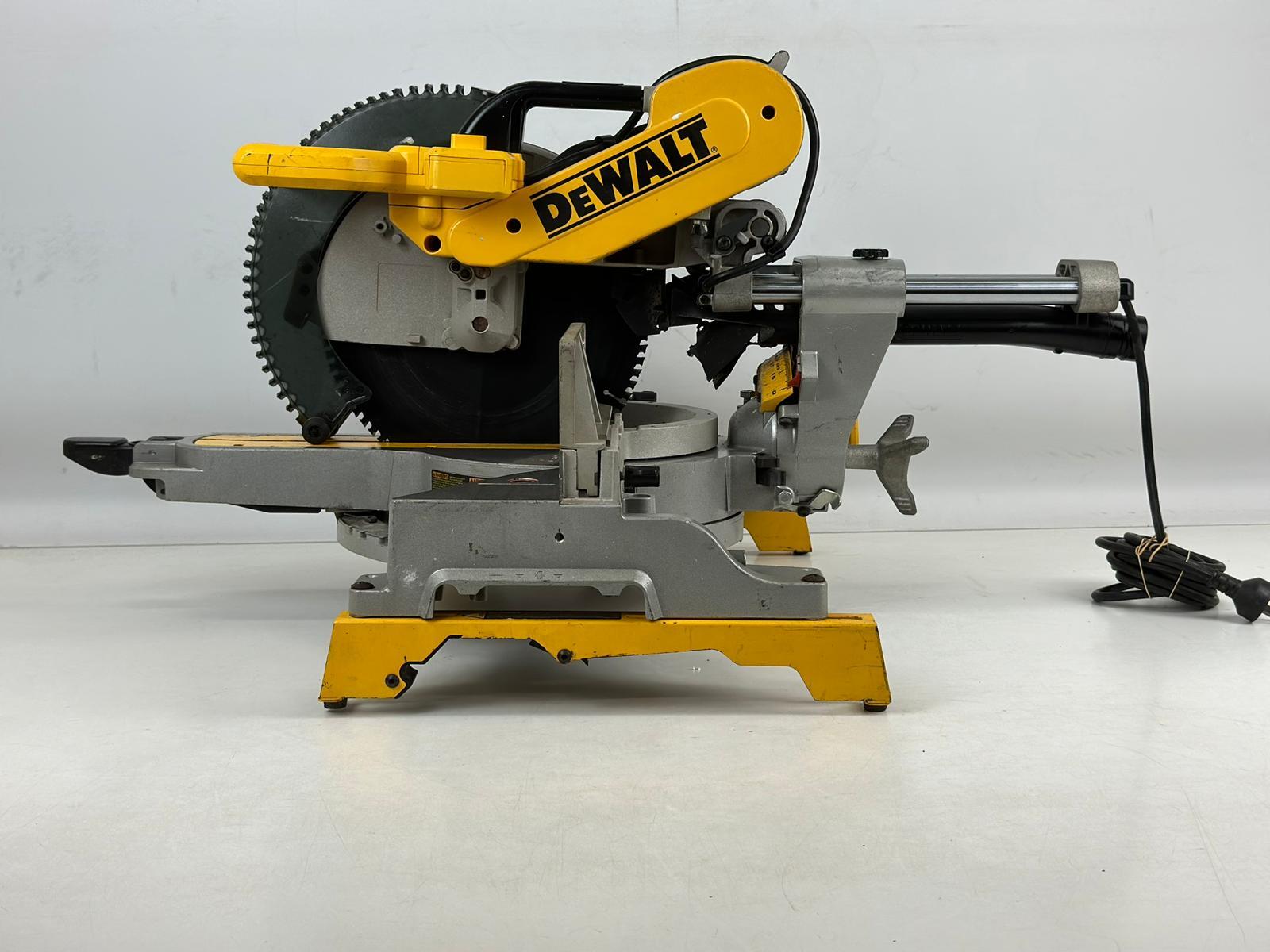

DeWalt DWS780-XE 12" Double Bevel Sliding Compound Miter Compact Powerful

The DeWalt DWS780 is a high-performance, versatile miter saw designed for precision and efficiency in professional woodworking and carpentry. With a powerful 1675W motor and a large 305mm (12") blade, this saw delivers smooth and accurate cuts for a variety of applications. Its dual bevel and sliding mechanisms enhance cutting versatility and ease of use.

Features:

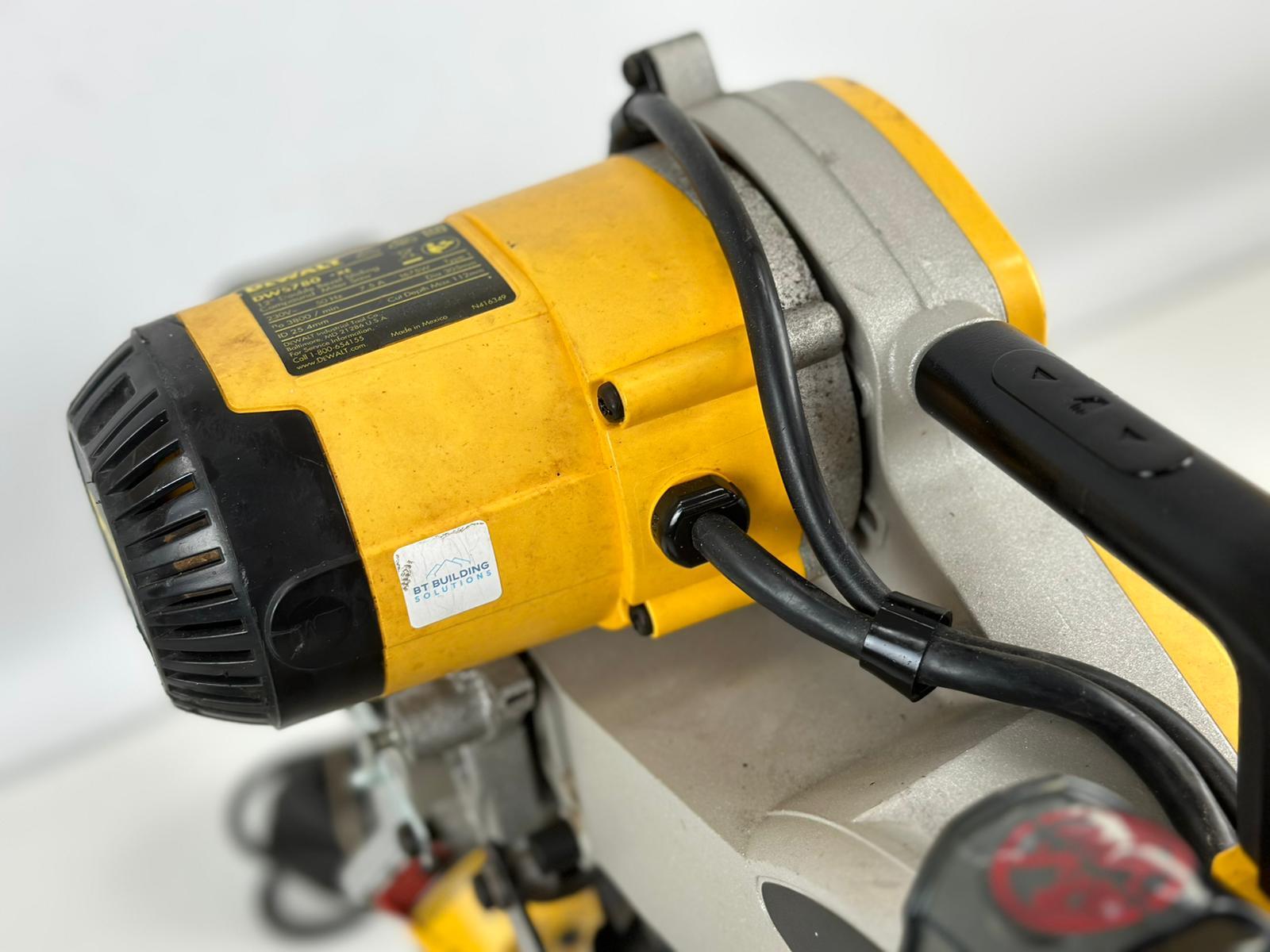

• Powerful 15 Amp, 3,800 rpm motor delivers extended power and durability
• Super-efficient dust collection system captures over 75% of dust generated
• Tall sliding fences support crown molding up to 7-1/2 in. nested and base molding up to 6-3/4 in. vertically against the fence while easily sliding out of the way for bevel cuts
• Exclusive back fence design cuts up to 2x14 dimensional lumber at 90° and 2x10 at 45°

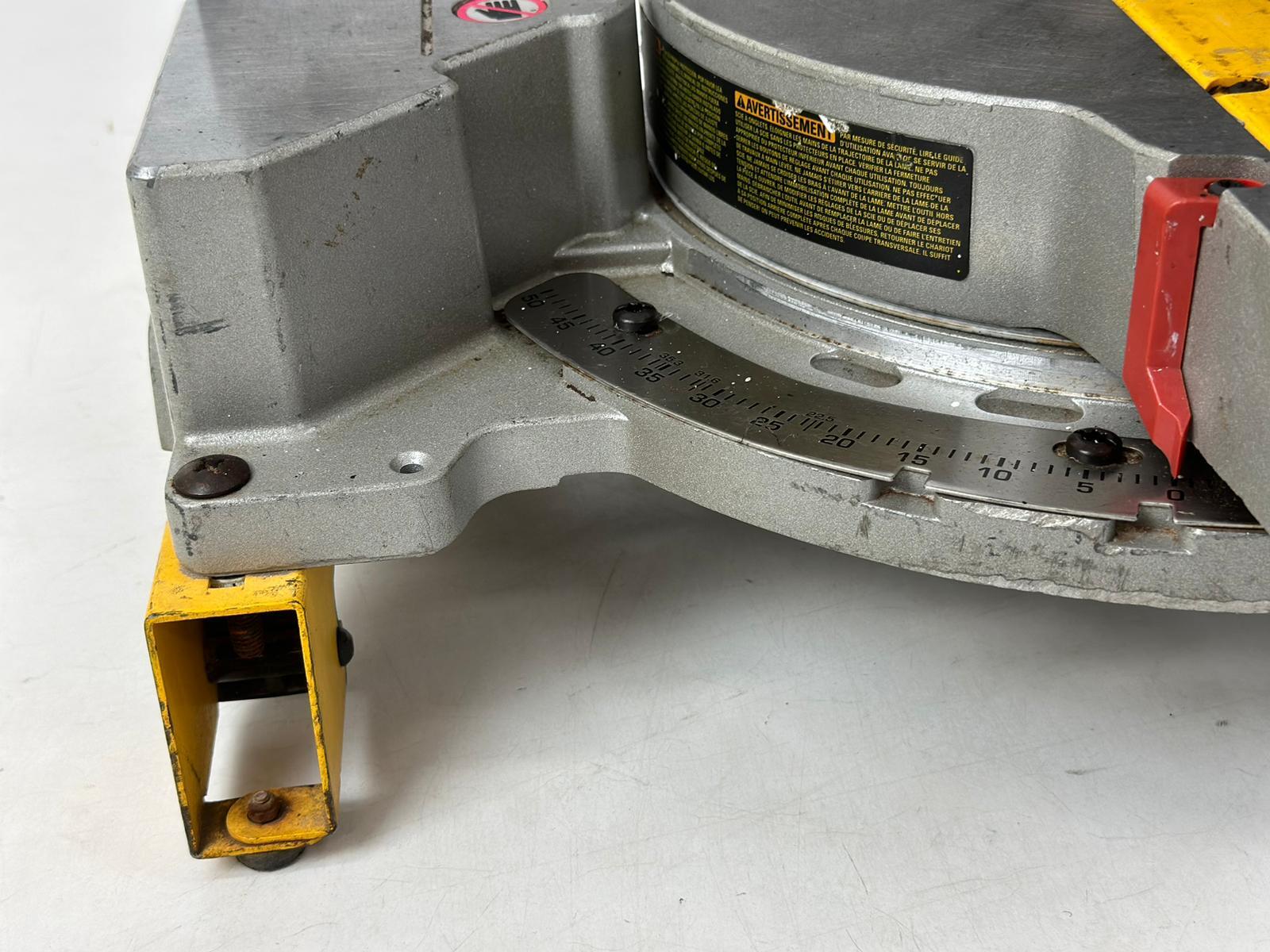

• Adjustable stainless-steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
• Miters 60° to the right and 50° to the left providing increased capacity
• Oversized bevel scale makes bevel angle adjustments accurate and easy
• Compact, lightweight design (58 lbs.) allows for easy transport and storage
• Cam lock miter handle with detent override delivers quick and accurate miter angles
• Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
• Innovative gearbox and belt-drive design increases vertical cutting capacity

Specifications:

• Power input: 1675W
• Power output: 960W
• Blade speed: 3800rpm
• Blade Diameter: 305mm (12")
• Blade bore: 25.4mm
• Bevel capacity:
  • Left: 49°
  • Right: 49°
• Mitre Capacity:
  • Left: 50°
  • Right: 60°
• Cutting capacity:
  • 90°/90° (W x H): 303mm x 110mm
  • 90°/90° (W x H): 345mm x 76mm
  • 45°/90° (W x H): 268mm x 63mm
  • 45°/90° (W x H): 345mm x 44mm
  • 90°/45° (W x H): 211mm x 112mm
  • 90°/45° (W x H): 244mm x 76mm
  • 45°/45° (W x H): 212mm x 76mm
• Max depth of cut: 170mm
• Dimensions (L x D x H): 770mm x 470mm x 396mm
• Weight: 24.8kg

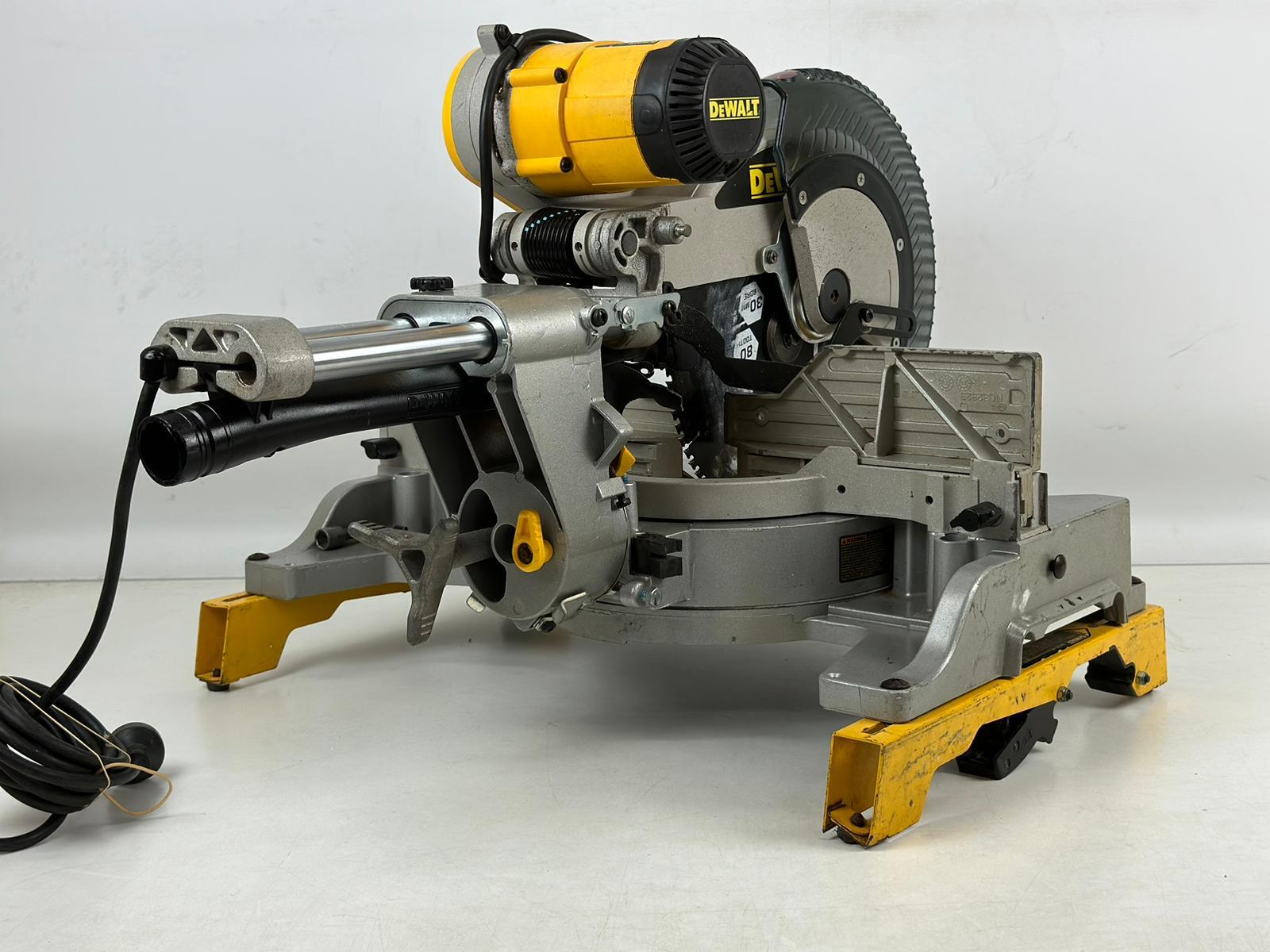

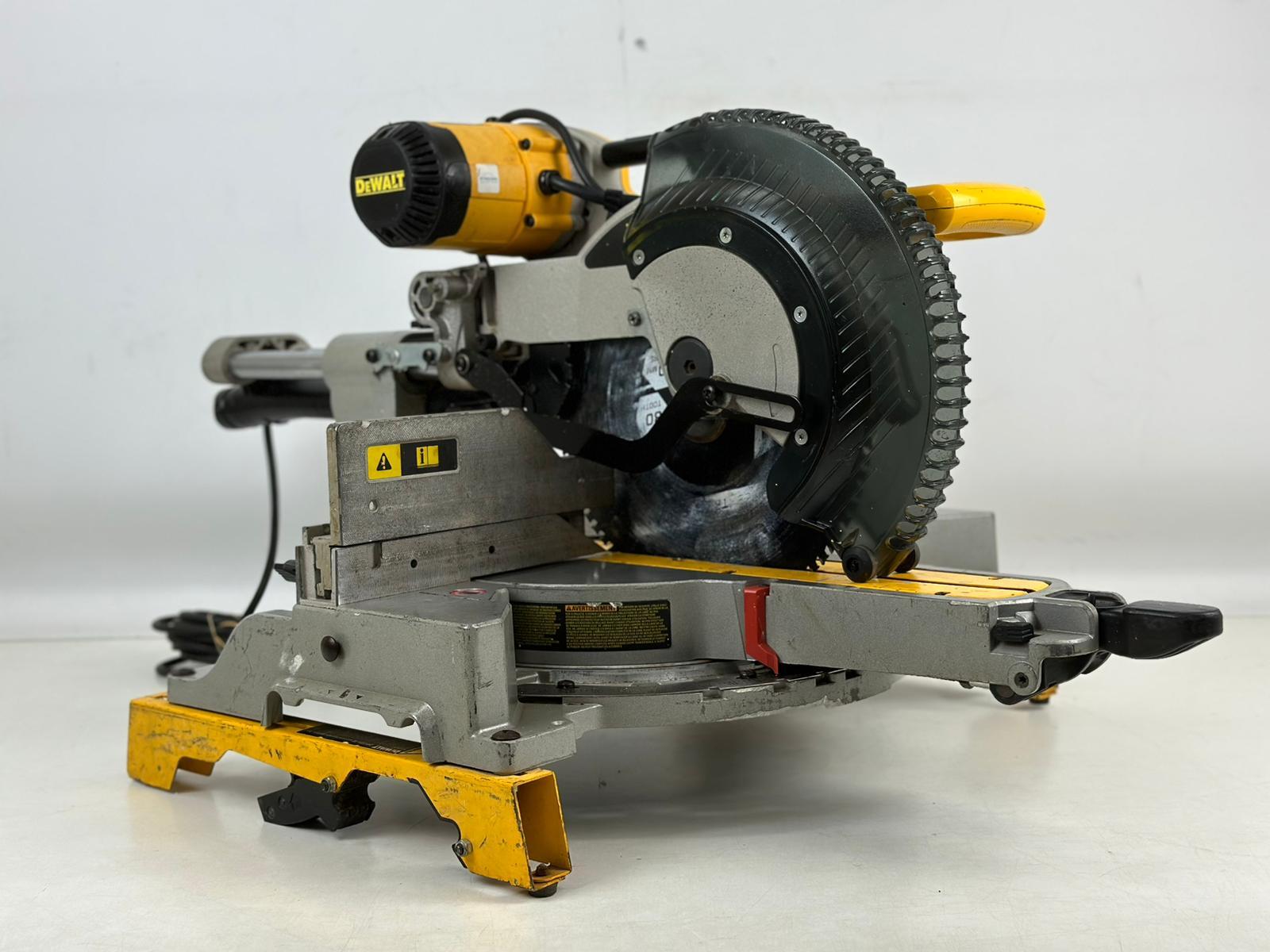

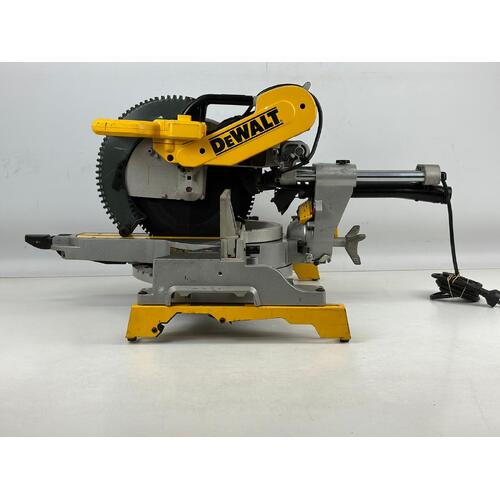

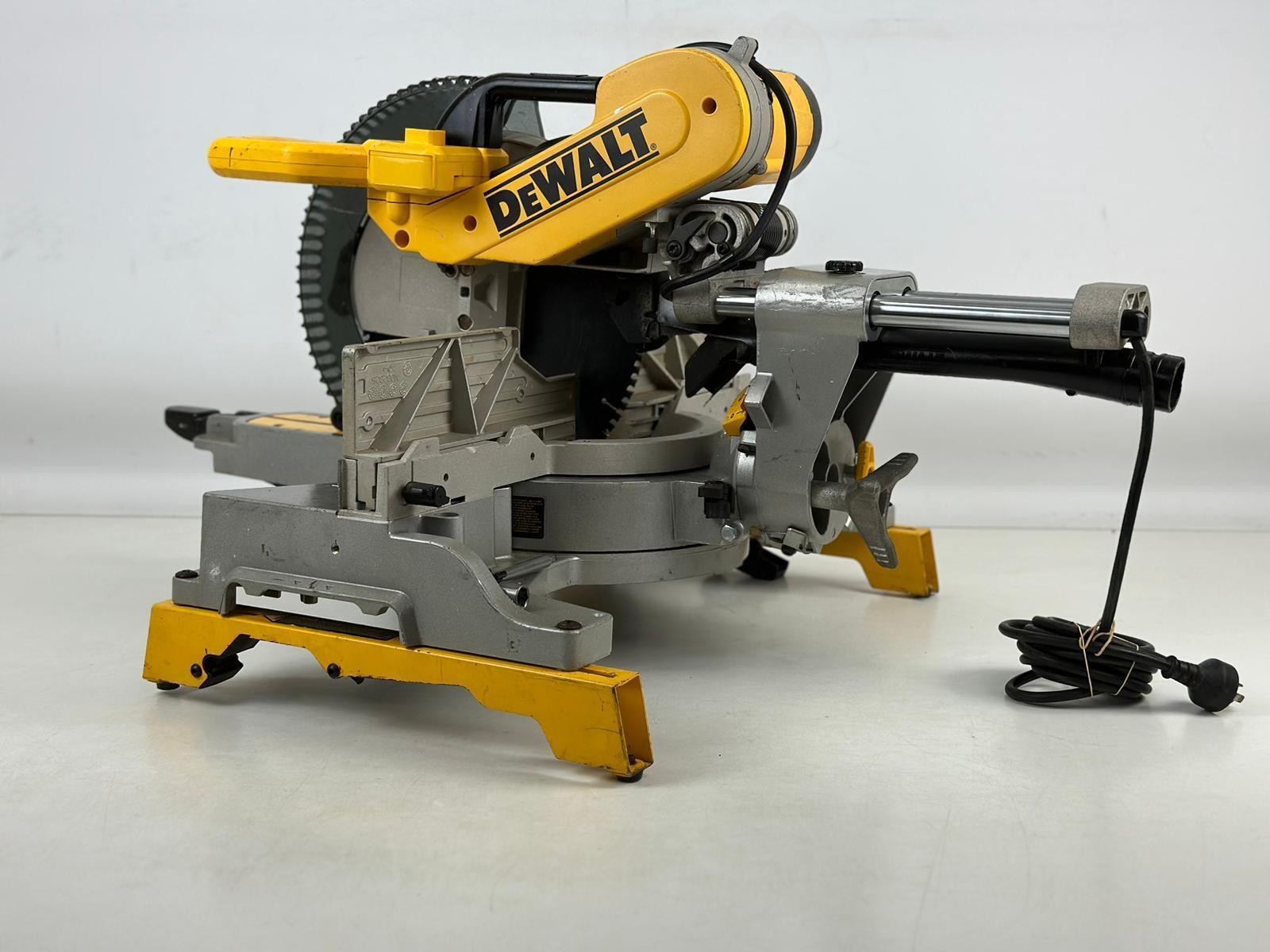

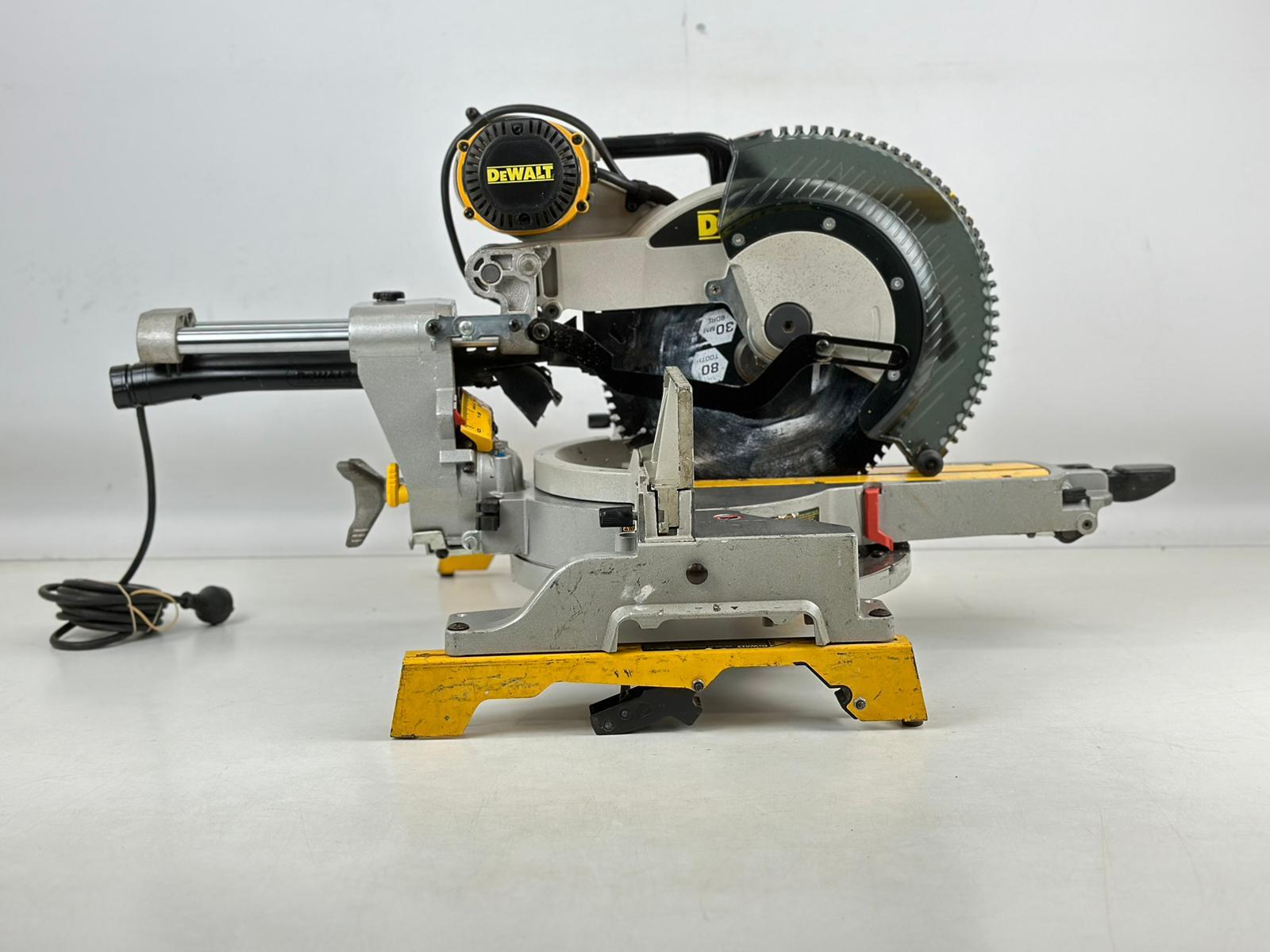

ITEM IS IN PRE OWNED CONDITION, REFER TO PHOTOS FOR THE EXACT CONDITION AND INCLUSIONS.

PLEASE PICK UP FROM OUR MOUNT DRUITT STORE!
